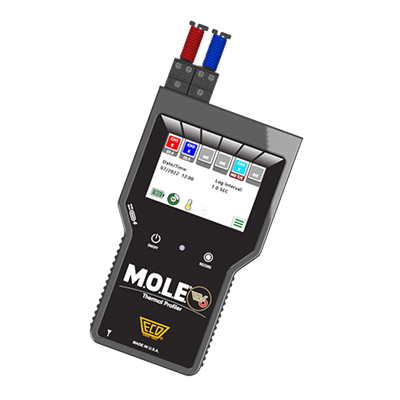

ECD - M.O.L.E. EV6 Thermal Profiler

ECD - M.O.L.E. EV6 Thermal Profiler

ECD - M.O.L.E. EV6 Thermal Profiler

ECD - M.O.L.E. EV6 Thermal Profiler

  • ECD
  • 125-EV6
Some items may not be available in all areas. Please contact our Customer Service team at (800) 405-1730 or info@murraypercival.com for more details and quoting info.
Email Print
With a revolutionary new design, M.O.L.E. EV6 brings deep dats collection and touch screen convenience to thermal profiling. The traveling thermal profiler allows configuration, measurement and data analysis right on the device - providing immediate actionable information, saving time and reducing the requirement for intensive operator training. Using a familiar smartphone-like capacitive touch screen, users now have shop floor data literally at their fingertips. The six-channel M.O.L.E. EV6 integrates with all ECD RIDER machine quality management technologies for a truly scalable approach, made easier with visual, touch screen control.


Simple and Immediate Status Confirmation
  • On-screen instrument status displays:
    • Live temperature readings
    • Thermal profile
    • KPI table

Preventative Maintenance
  • Built-in calibration reminders
  • Battery life/charge indicators
  • Memory status

Flexibility
  • Supports multiple thermocouple types

Speed
  • Sampling at up to 100 samples per second

Ease of Use
  • USB C communications and charging
  • 2-button control (on/off and record)

Operational Robustness
  • High-capacity, off-the-shelf Lipo battery
  • Auto shutdown protection for over temp conditions
  • Programmable to conserve battery life
  • Watchdog timer-monitored firmware control
  • ESD-protected inputs
  • Non-volatile profile memory

DISPLAY:

  • PS TFT Display
  • 240 x 400 Dot Matrix
  • High Brightness LED Backlight Any Angle Viewing Direction


THERMOCOUPLE SENSORS (UP TO 6):

  • ECD Micro-Thermocouples: Type K, T, J, E, N, R, S & B (Type K Special Limits of error)
  • %RH: ECD VaporWATCH RH Sensor


DATA ACQUISITION:

  • Sampling Interval: 100 samples/second to 10 minutes/sample
  • Data points: 16 million (2.6 million at 6 channels) or 200 data runs (whichever comes first)
  • Accuracy: +/- 1°C (1.8°F)
  • Resolution: 0.0056°C (0.01°F)*
  • Noise Rejection: 50-60 hrz*
  • Measurement range: -200°C to 1,200°C (-328°F to 2,192°F)

*>= 0.5 seconds/sample

POWER:

  • Battery: Lipo (Lithium Polymer ion) – Rechargeable, 1100mAh
  • Charge Protection: optimized for lithium polymer
  • Charge time: Full – < 4 hours
  • Charge runtime: Full – 6 to 8 Hours
  • Battery Life: 300-400 charging cycles or 3 years (Minimum)
  • Charger input current: 60 ma via USB Interface
